Contractor Grade Adjustable Width Spreader

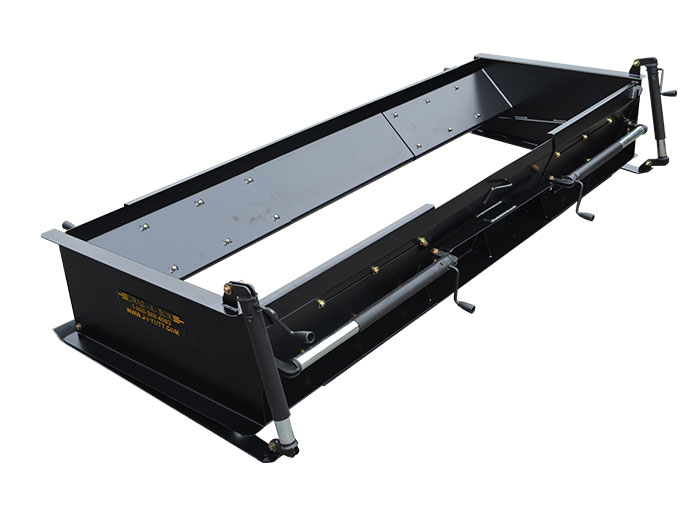

Contractor Grade Adjustable Width Spreader The Contractor Grade (CG) adjustable width material spreader only comes in one size. The CG8-10 adjusts from a minimum of 8 ft wide up to a maximum of 10 ft wide. It is recommended for use with a medium size dump truck or larger. The height adjustment can be performed at any time without using tools by cranking 2000 LB screw jacks until the material spreader is at the height needed. Each side can be individually adjusted up to 1 ft. The spreader uses replaceable standard width skids made of mild steel. The Contractor Grade spreader mounts to the truck frame with two L shaped flat pull bars.

Features

- The Contractor Grade (CG) Spreader is made light weight and strong for years of dependable service.
- The spreader is composed of High Grade bright finish A-36 Steel, laser cut and professionally welded.
- All fasteners are Grade 5 and galvanized for chemical and corrosion resistance.

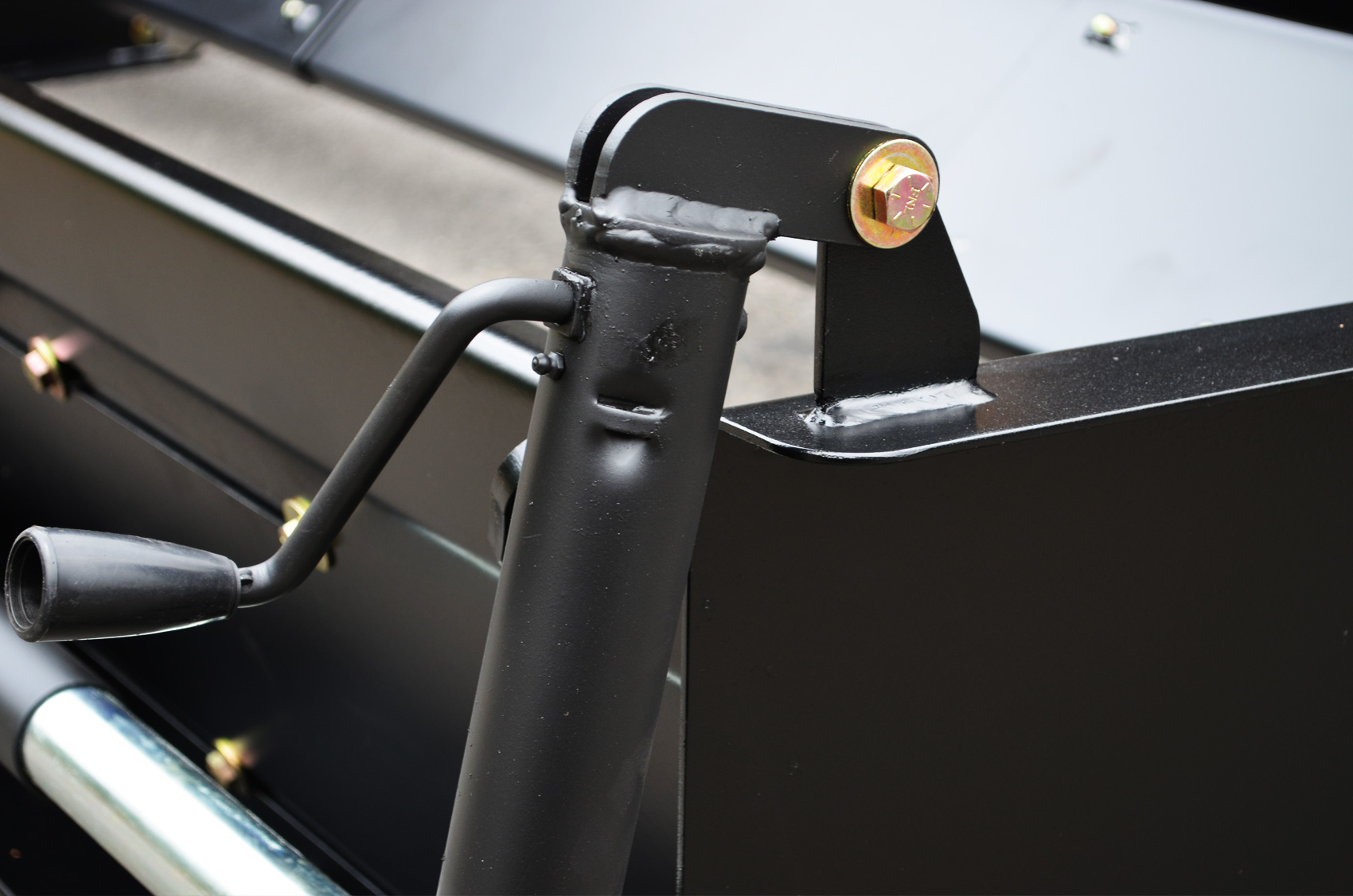

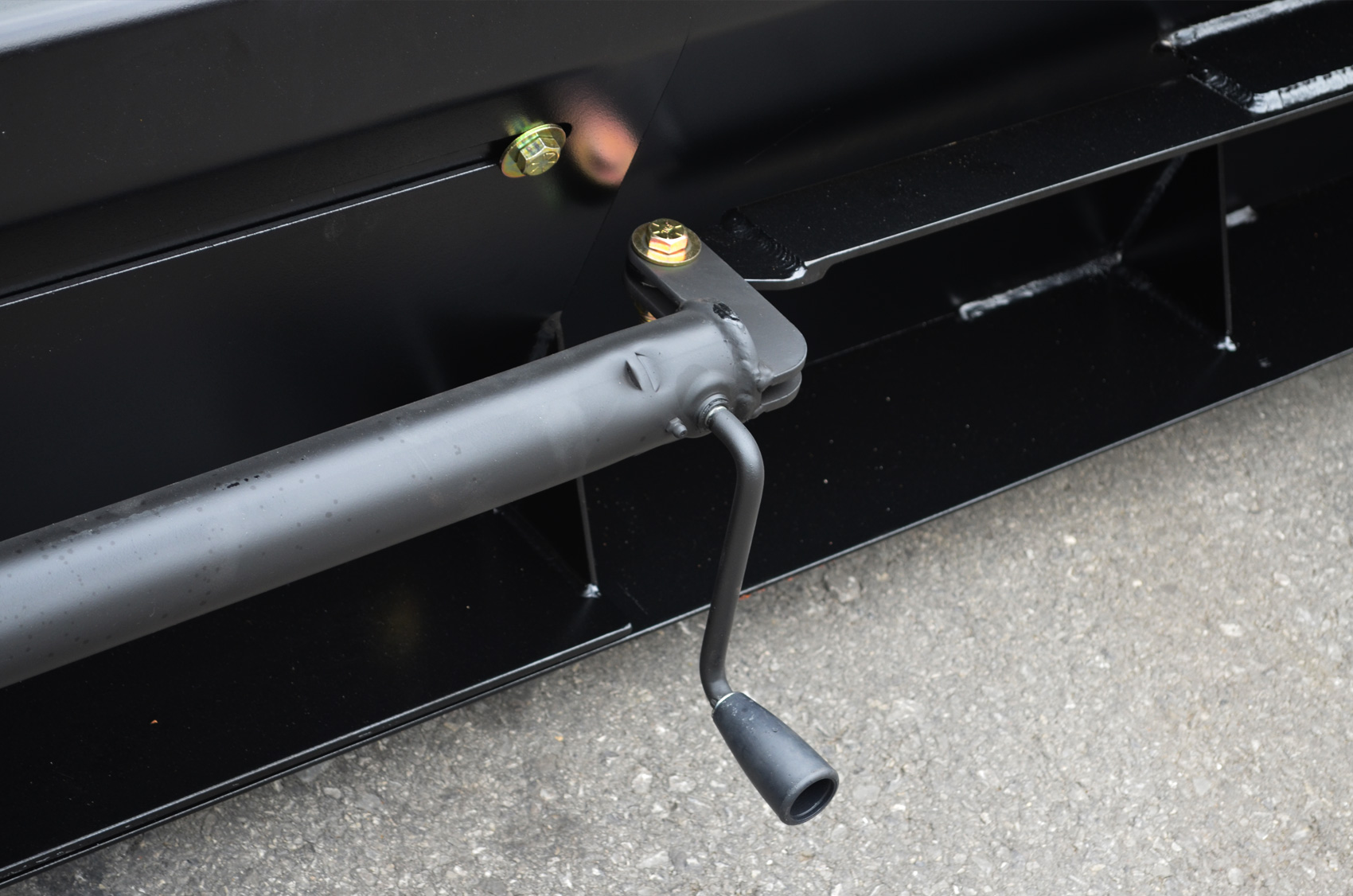

- Mechanical 2000 lb capacity jacks for height and width adjustment are standard. They are easily removed for replacement.
- The adjustable width version is the CG8-10
- The fixed width version is the CG8

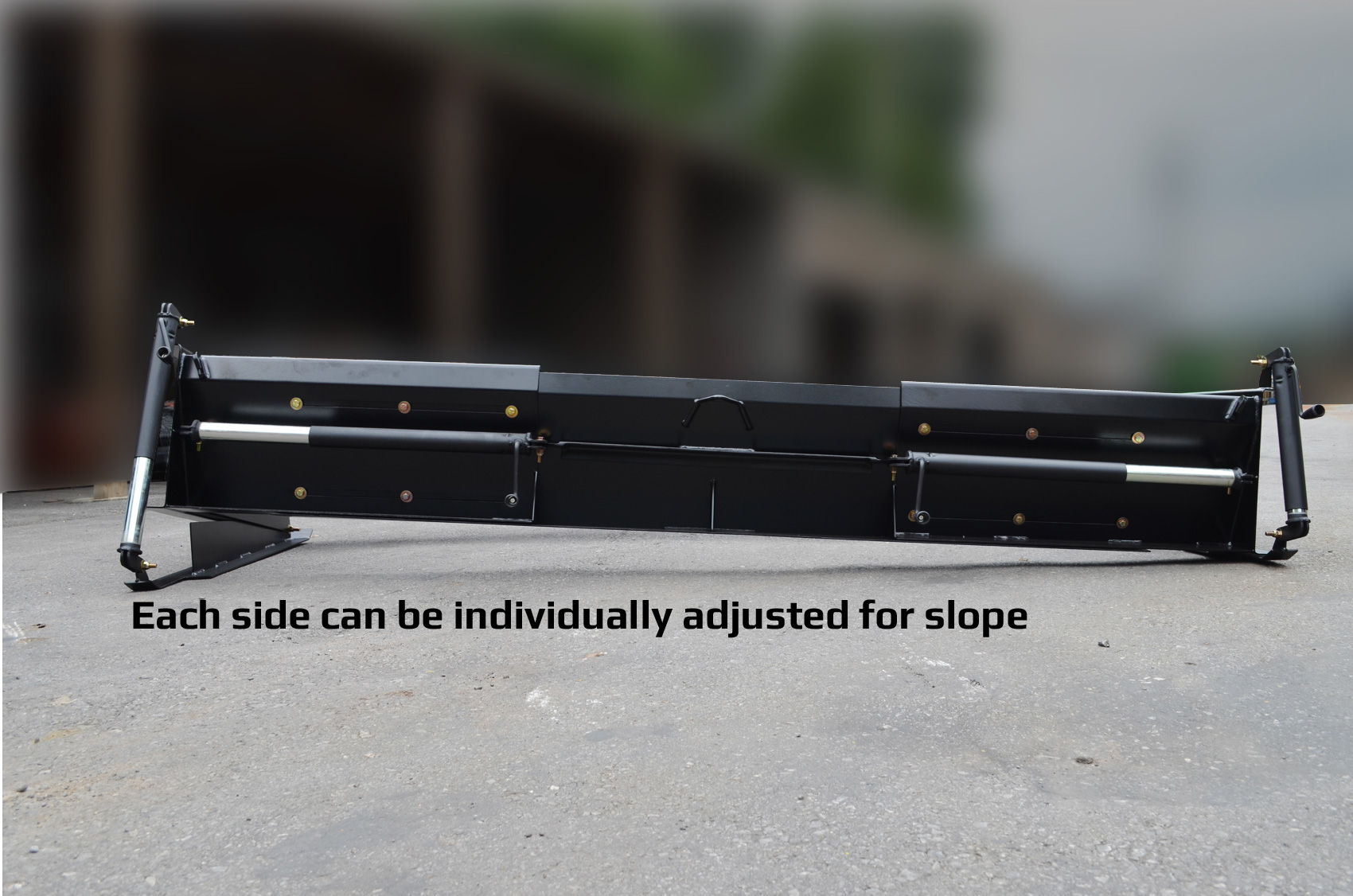

- The height of each side of the spreader is independently adjustable to provide or correct for ground slope.

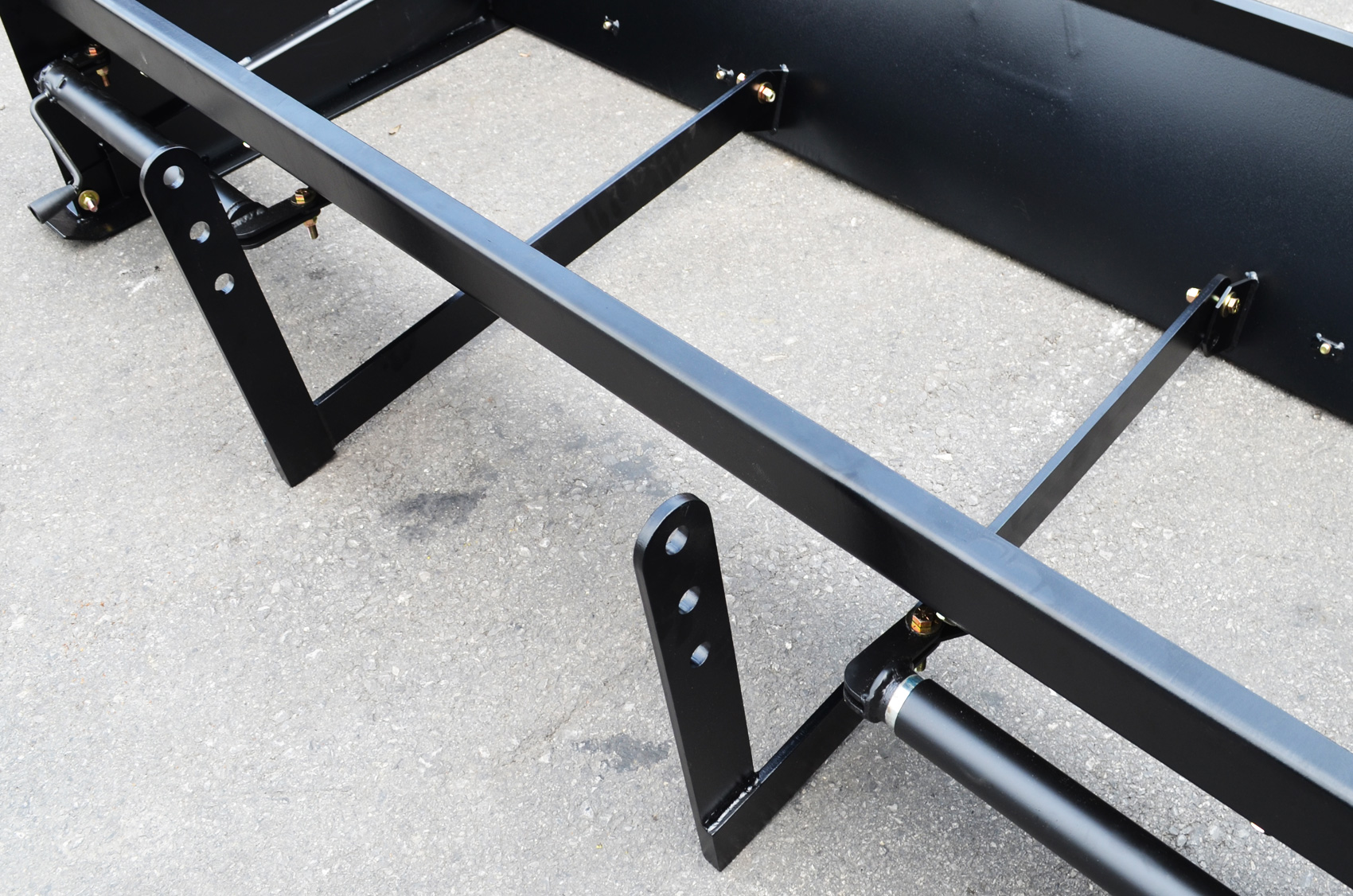

- The hitch system is simple, strong, and has no moving parts.
- All adjustments for height can be made without tools. Width adjustments will need two 3/4" wrenches.
- There is also an optional baffle kit


Images (click for larger images)


Interested in buying from us but have questions about the type of spreader that’s right for you?

Contact us so that we can better serve you.

See our Accessories page for a description of these items that can make the experience of using one of our Material Spreaders easier and more profitable.See the Downloads page for Order Forms and other information.
